C-THRU NAVIGATOR
Hands-Free AR Vision & Navigation
Balanced, Lightweight, & Rugged
The Navigator was engineered to withstand the extreme heat, unpredictable environments, and impacts of the fireground. It's the first supercomputer designed to be worn in these conditions.
Convenient Modular Design
Ready when you need it, easy to remove when you don't. The Navigator's two-piece design makes swapping between Power Modules, helmets, and firefighters fast and simple.
Multiple Vision Modes
Navigator offers four vision modes providing clear visibility through smoke for 2x faster searches and enhanced situational awareness.
Live Firefighter POV
The Navigator streams real-time video from inside the fire, giving Command full visibility. Incident footage is stored and accessible post-incident for review and training via the Command Tablet.
Always Stay Oriented
The Navigator’s real-time Entry Side Compass continuously points you towards the initial entry side of the building, helping to maintain directional awareness.
Two-Way Visual Communication

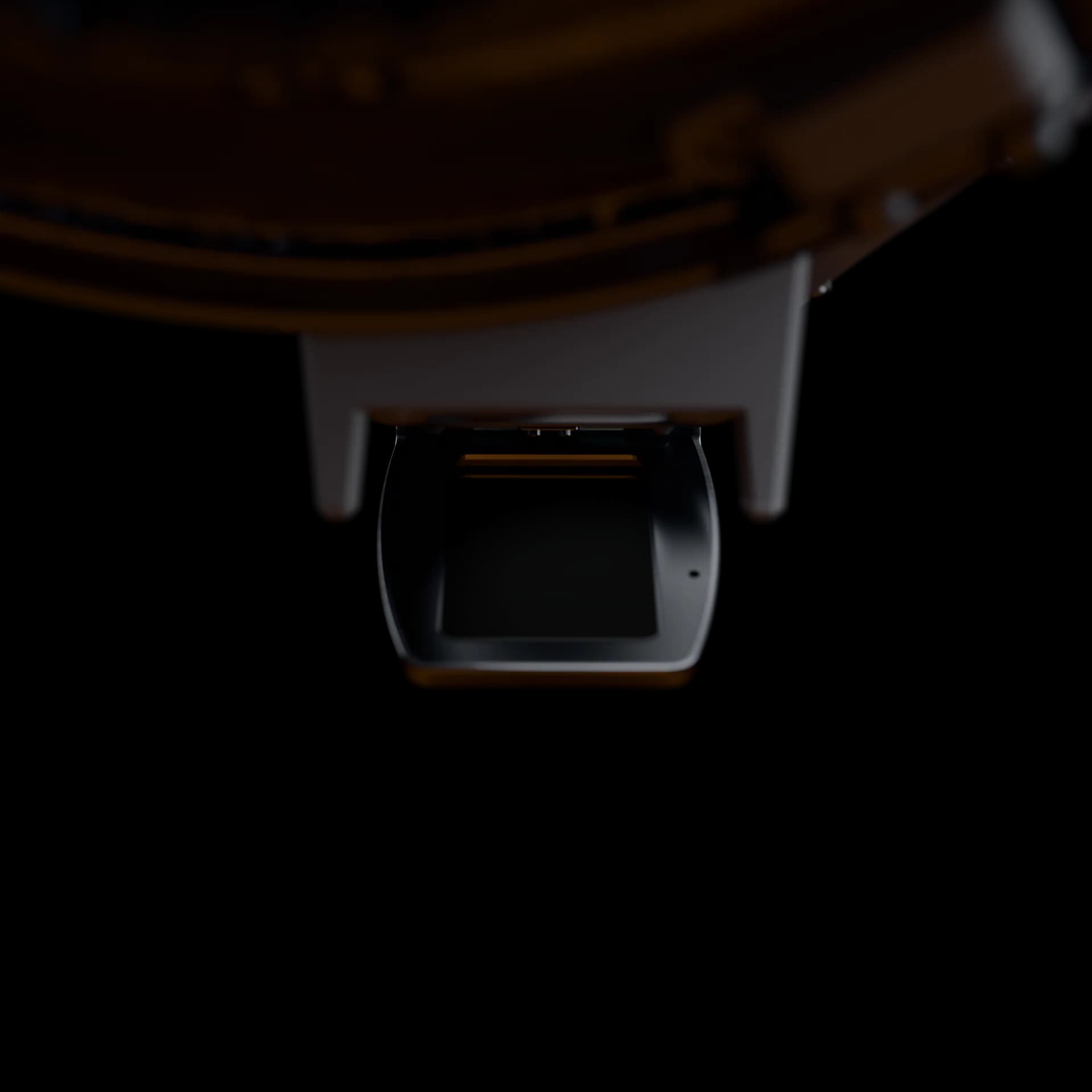

The Navigator's HUD delivers clear visual cues for critical IC commands, ensuring you always see urgent messages, keeping radios clear.
MAYDAY
In times of distress, activate your Navigator's MAYDAY to alert IC instantly. Command can also trigger this remotely, highlighting your live feed and ensuring help gets to you—fast.
Navigator Specifications
Rugged, fire-hardened, and built for extreme conditions—The Navigator delivers big results and durable performance in a small footprint.
FEATURES | SPECIFICATIONS |
|---|---|
Thermal Camera | High frame-rate, US-made LWIR sensor, 320 x 240 resolution |
Vision Modes | EdgeTech™ situational awareness outlines, full raw thermal depth perception, hot-spot indication, and "Predator" triple-overlay |
Operating Environment | Continuous operation from 0°C to 66°C for up to 2 hrs; full functionality at 95°C for 15+ min |
Runtime | 2+ hrs runtime under typical fireground temperatures and usage |
Heat Survivability | Survives 815°C flame contact for 10 sec, per NFPA 1801 |
Impact Survivability | 1m drop-tested; remains intact with no compromise to helmet or device safety |
Weight | 3.5 lbs |
Balance | <1% front-to-rear pitch bias |
Helmet Mount | NFPA 1971-compliant mounts; supports Cairns 880; does not interfere with helmet certification |
HUD Adjustability | Gloved-hand adjustable HUD 0-90°; field-replaceable unit (FRU) |
Laser | Eye-safe green laser, visible through smoke up to 30+ ft |
Waterproof | IP67 rated; dust-tight and submersible to 1m |
Manufacturer | Proudly designed and manufactured in the U.S.A. |
Become the Future of Firefighting
Our Pioneer Program is now open for select departments.
